XWFE Refrigerator Water Filter OEM

OEM Refrigerator Water Filter - XWFE

The XWFE Filter replaces the XWF Filter and is embedded with Leak-Detecting Sensing Technology. This innovation enables refrigerators to shut down the water valve when a leak is detected at the filter. The size, shape, assembly, and installation of the filter remains unchanged from the previous XWF filter. This filter has an embedded RFID chip in it which enables the communication with the main-board of the refrigerator. The filter is uniquely identified with the help of this chip. Once the cartridge is replaced it automatically notifies the refrigerator. Once used, the main-board will detect when the filter needs to be replaced and will remind you to replace the filter. The refrigerator will start to restrict the flow rate of the water through dispenser until the filter is replaced with the newer one.

Part Number XWFE replaces WR01F04493, XWF, WR01F04788

RFID

To have Leak-Detecting Sensing Technology, the XWFE filter uses a RFID sensor (Radio-Frequency Identification). The RFID sensor can actually be seen through the wrapper on the filter. The RFID sensor communicates with the Refrigerator controls and can display the following information:

• Filter dry
• Filter reaching expiration or expired
  • The Filter Status indicator light will flash red.
  • At 0% life, the filter will need changing.
  • To resolve, change the water filter or install the bypass plug with the RFID sensor.
  • Once changed to a new XWFE filter, the Filter Status LED will flash 3 times and the Filter Status indicator will turn OFF.
• Filter wet
  • If the filter becomes wet, the signal will DEACTIVATE THE WATER VALVE to prevent worsening of the leak.
  • As a result, there will be no ice or water once the water valve is OFF.
  • The Filter Status indicator light will flash red.
  • A buzzing sound may be heard.
  • To resolve, change the water filter or install the bypass plug with the RFID sensor.
  • A new filter or the bypass plug with RFID will reactivate the water valve.
• Filter installed improperly
  • Beeping may occur when pressing on the paddle.
  • To resolve, try one of more of the following options:
    • Remove and re-install XWFE filter.
    • Change to another XWFE filter.
    • Install the RFID bypass plug in place of the XWFE filter.
• No filter | Bad or Damaged filter | Wrong filter | Non-GE filter
  • "ERR" will be displayed in the control.
  • The water valve is deactivated and there will be no water or ice dispensed.
  • The Filter Status indicator light will flash red.
  • A buzzing sound may be heard.
  • To resolve, a new filter or the bypass plug with RFID will reactivate the water valve.
• BP
  • Indicates the Bypass Plug with RFID is in place.

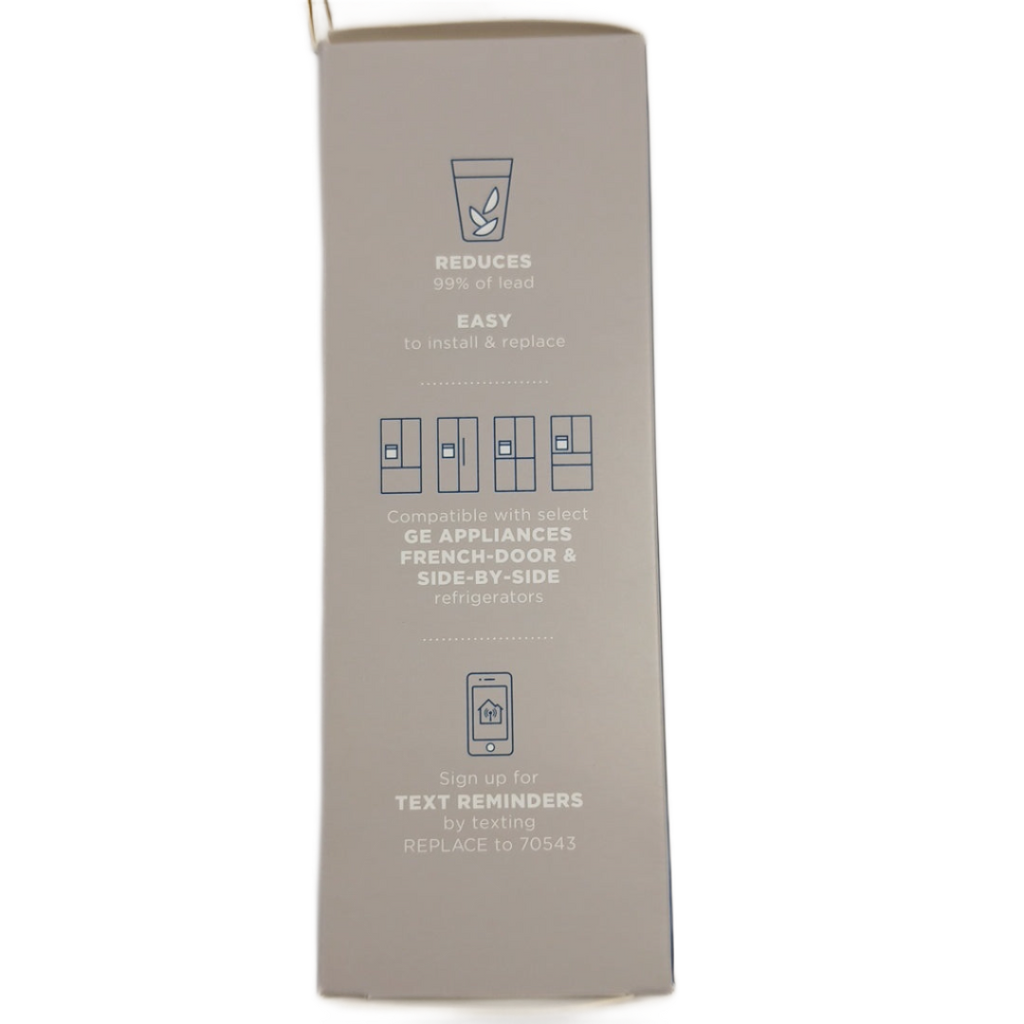

The XWFE filter replaces the XWF filters and is compatible with all refrigerators that use XWF, including select side-by-side and bottom freezer refrigerators.

• Premium Filtration - These filters are certified to reduce chlorine-resistant cysts, lead, select pharmaceuticals, and 50 other impurities often found in water.
• Pharmaceuticals Reduction - Our filter reduces select pharmaceuticals from water, including ibuprofen, progesterone, atenolol, trimethoprim, and fluoxetine*. (*Impurities not necessarily found in all users’ water.)

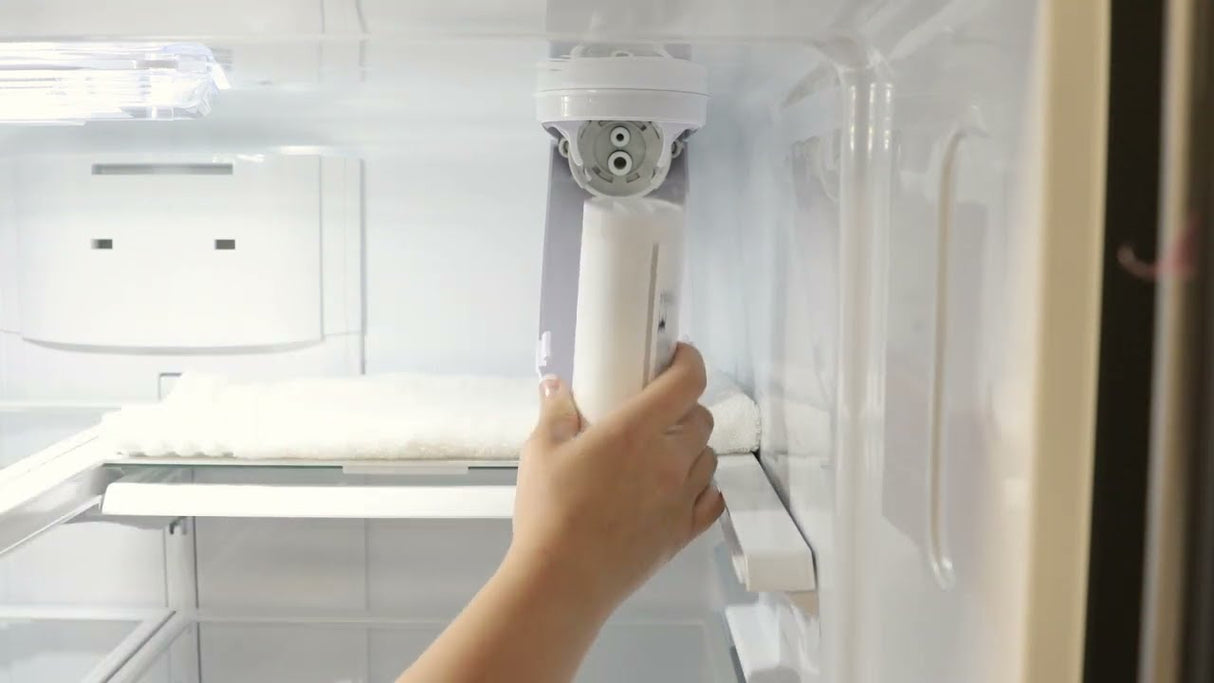

• Easy Filter Replacement - You don’t need any tools or to turn off the water to replace these cartridge filters inside your refrigerator.
• Six-Month Filter Life - For best filtration results, filter cartridge should be replaced every six month or 170 gallons of water filtration.

Supported Models:

CFE26KP2NBS1, CFE26KP2NKS1, CFE26KP2NLS1, CFE26KP2NNS1, CQE28DM5NBS5, CVE28DM5NBS5, CVE28DM5NS5, CVE28DP2NBS1, CVE28DP2NS1, CVE28DP3NBD1, CVE28DP3ND1, CVE28DP4NBW2, CVE28DP4NW2, CWE19SP2NBS1, CWE19SP2NNS1, CWE19SP3NBD1, CWE19SP3NKD1, CWE19SP3NND1, CWE19SP4NBW2, CWE19SP4NKW2, CWE19SP4NNW2, CZS22MP2NBS1, CZS22MP2NDS1, CZS22MP2NES1, CZS22MSKKHSS, DSE25JBLKCTS, DSE25JEMKCDS, DSE25JGHKCBB, DSE25JGHKCWW, DSE25JMHKCES, DSE25JSHKCSS, GDE21EGKGRBB, GDE21EGKGRWW, GDE21EGKJRBB, GDE21EGKJRWW, GDE21EGKLRBB, GDE21EGKLRWW, GDE21EGKNRBB, GDE21EGKNRWW, GDE21EMKGRES, GDE21EMKJRES, GDE21EMKLRES, GDE21EMKNRES, GDE21ESKGRSS, GDE21ESKJRSS, GDE21ESKLRSS, GDE21ESKNRSS, GDE25ESKGRSS, GDE25ESKJRSS, GDE25ESKLRSS, GDE25ESKNRSS, GFE24JBLGFTS, GFE24JBLJFTS, GFE24JBLNFTS, GFE24JGKGFBB, GFE24JGKGFWW, GFE24JGKJFBB, GFE24JGKJFWW, GFE24JGKLFBB, GFE24JGKLFWW, GFE24JGKNFBB, GFE24JGKNFWW, GFE24JMKGFES, GFE24JMKJFES, GFE24JMKLFES, GFE24JMKNFES, GFE24JSKGFSS, GFE24JSKJFSS, GFE24JSKLFSS, GFE24JSKNFSS, GFE26JBMAFTS, GFE26JBMKFTS, GFE26JBMNFTS, GFE26JEMAFDS, GFE26JEMKFDS, GFE26JEMNFDS, GFE26JGMAFBB, GFE26JGMAFWW, GFE26JGMNFBB, GFE26JGMNFWW, GFE26JMMAFES, GFE26JMMKFES, GFE26JMMNFES, GFE26JSMAFSS, GFE26JSMKFSS, GFE26JYMKFFS, GFE26JYMNFFS, GNE21FMKGFES, GNE21FMKJFES, GNE21FMKLFES, GNE21FSKGFSS, GNE21FSKJFSS, GNE21FSKNFSS, GNE25JGKGFBB, GNE25JGKGFWW, GNE25JGKJFBB, GNE25JGKJFWW, GNE25JGKKFBB, GNE25JGKKFWW, GNE25JGKLFBB, GNE25JGKLFWW, GNE25JGKNFBB, GNE25JGKNFWW, GNE25JMKGFES, GNE25JMKJFES, GNE25JMKKFES, GNE25JMKLFES, GNE25JMKNFES, GNE25JSKDFSS, GNE25JSKGFSS, GNE25JSKJFSS, GNE25JSKKFSS, GNE25JSKLFSS, GNE25JSKNFSS, GNE27ESMAFSS, GNE27ESMKFSS, GNE27EYMKFFS, GNE27EYMNFFS, GNE27JGMAFBB, GNE27JGMAFWW, GNE27JGMKFBB, GNE27JGMKFWW, GNE27JGMNFBB, GNE27JGMNFWW, GNE27JMMAFES, GNE27JMMKFES, GNE27JMMNFES, GNE27JSMAFSS, GNE27JSMDFSS, GNE27JSMKFSS, GNE27JYMKFFS, GNE27JYMNFFS, GSE23GGKKCBB, GSE23GGKKCCC, GSE23GGKKCWW, GSE23GGKNCBB, GSE23GGKNCCC, GSE23GGKNCWW, GSE23GGKPCCC, GSE23GGKPCWW, GSE23GGKRCBB, GSE23GGKRCCC, GSE23GGKRCWW, GSE23GSKKCSS, GSE23GSKNCSS, GSE23GSKPCSS, GSE23GSKRCSS, GSE25GGHKCBB, GSE25GGHKCCC, GSE25GGHKCWW, GSE25GGHNCBB, GSE25GGHNCWW, GSE25GGHPCCC, GSE25GGHRCBB, GSE25GGHRCCC, GSE25GGHRCWW, GSE25GSHKCSS, GSE25GSHNCSS, GSE25GSHPCSS, GSE25GSHRCSS, GSE25HBLKHTS, GSE25HEMKHDS, GSE25HGHKHBB, GSE25HGHKHWW, GSE25HMHKHES, GSE25HSHKHSS, GSS23GGKKCBB, GSS23GGKKCWW, GSS23GGKNCBB, GSS23GGKNCWW, GSS23GGKPCBB, GSS23GGKPCWW, GSS23GGKRCBB, GSS23GGKRCWW, GSS23GMKKCES, GSS23GMKNCES, GSS23GMKPCES, GSS23GMKRCES, GSS23GSKKCSS, GSS23GSKNCSS, GSS23GSKPCSS, GSS23GSKRCSS, GSS23HGHKCBB, GSS23HGHKCWW, GSS23HMHKCES, GSS23HSHKCSS, GSS23HSHNCSS, GSS23HSHPCSS, GSS23HSHRCSS, GSS25CGHKCBB, GSS25CGHKCWW, GSS25CGHLCBB, GSS25CGHLCWW, GSS25CGHPCBB, GSS25CGHPCWW, GSS25CGHRCBB, GSS25CGHRCWW, GSS25CSHKCSS, GSS25CSHLCSS, GSS25CSHPCSS, GSS25CSHRCSS, GSS25GGHKCBB, GSS25GGHKCWW, GSS25GGHLCBB, GSS25GGHLCWW, GSS25GGHNCBB, GSS25GGHNCWW, GSS25GGHPCWW, GSS25GGHRCBB, GSS25GGHRCWW, GSS25GMHKCES, GSS25GMHLCES, GSS25GMHNCES, GSS25GMHRCES, GSS25GSHDCSS, GSS25GSHKCSS, GSS25GSHLCSS, GSS25GSHNCSS, GSS25GSHPCSS, GSS25GSHRCSS, GSS25IBNBHTS, GSS25IBNEHTS, GSS25IENBHDS, GSS25IENEHDS, GSS25IENRHDS, GSS25IGNBHBB, GSS25IGNBHWW, GSS25IGNEHBB, GSS25IGNEHWW, GSS25IGNRHWW, GSS25IMNBHES, GSS25IMNEHES, GSS25IMNRHES, GSS25IYNBHFS, GSS25IYNPHFS, GSS25IYNRHFS, GSS25LSLKCSS, GSS25LSLLCSS, GSS25LSLNCSS, GSS25LSLPCSS, GSS25LSLRCSS, GWE19JGLGFBB, GWE19JGLGFWW, GWE19JGLKFBB, GWE19JGLKFWW, GWE19JGLNFBB, GWE19JGLNFWW, GWE19JMLGFES, GWE19JMLKFES, GWE19JMLNFES, GWE19JSLDFSS, GWE19JSLGFSS, GWE19JSLKFSS, GWE19JSLNFSS, GYE18JBLGFTS, GYE18JBLKFTS, GYE18JBLNFTS, GYE18JEMGFDS, GYE18JEMKFDS, GYE18JEMNFDS, GYE18JMLGFES, GYE18JMLNFES, GYE18JSLGFSS, GYE18JSLKFSS, GYE18JSLNFSS, GZS22DGJKFBB, GZS22DGJKFWW, GZS22DGJPFBB, GZS22DGJPFWW, GZS22DGJRFBB, GZS22DGJRFWW, GZS22DMJKFES, GZS22DMJNFES, GZS22DMJRFES, GZS22DSJKFSS, GZS22DSJNFSS, GZS22DSJRFSS, GZS22IBNBHTS, GZS22IENBHDS, GZS22IENPHDS, GZS22IENRHDS, GZS22IMNBHES, GZS22IMNRHES, GZS22IYNBHFS, GZS22IYNPHFS, GZS22IYNRHFS, PSE25KBLKHTS, PSE25KBLNHTS, PSE25KSHKHSS, PSE25KYHBHFS, PSS28KSHKCSS, PSS28KSHNCSS, PSS28KYHBCFS, PVD28BYNBFS, PZS22MSKKHSS, PZS22MSKPHSS, PZS22MYKBHFS, QNE27JBMAFTS, QNE27JBMKFTS, QNE27JBMLFTS, QNE27JSMAFSS, QNE27JSMKFSS, QNE27JSMLFSS, QNE27JYMKFFS, QNE27JYMNFFS, XFE26JSMBFSS, XFE26JSMKFSS, XFE26JSMNFSS, XNE25JGKBFBB, XNE25JGKBFWW, XNE25JGKJFBB, XNE25JGKJFWW, XNE25JGKLFBB, XNE25JGKLFWW, XNE25JGKNFBB, XNE25JGKNFWW, XNE25JSKBFSS, XNE25JSKJFSS, XNE25JSKLFSS, XNE25JSKNFSS, XSS23GGKBCBB, XSS23GGKBCWW, XSS23GGKNCWW, XSS23GGKPCBB, XSS23GGKPCWW, XSS23GGKRCBB, XSS23GGKRCWW, XSS23GSKBCSS, XSS23GSKNCSS, XSS23GSKPCSS, XSS23GSKRCSS, XSS25GGHBCBB, XSS25GGHBCWW, XSS25GGHLCBB, XSS25GGHLCWW, XSS25GGHNCBB, XSS25GGHPCBB, XSS25GGHPCWW, XSS25GGHRCBB, XSS25GGHRCWW, XSS25GSHBCSS, XSS25GSHLCSS, XSS25GSHPCSS, XSS25GSHRCSS, ZIF181NPNAII, ZIF241NPNAII, ZIF301NPNAII, ZIR241NPNAII
